Lithium Polymer Cells

Lithium Polymer Cells Information

Lithium polymer batteries are ideal when your product design needs to be flexible. These are available in a wide array of designs and sizes.

Industries

Suitable for consumer electronics, automation, medical devices, security technology, power tools, transport, and measurement technology.


Voltage

The nominal voltage of lithium ion cells depends on the electrode material and is 3.6 or 3.7 volts. The charge voltage is usually 4.2 volts.

Temperature

The electrolytes may freeze at temperatures of around -25 ° C. Some manufacturers specify a working range of 0-40 ° C. 18-25 ° C is ideal.

Capacity

The capacity of a lithium battery is reduced over time even without use, mainly because of the reaction of lithium with the electrolyte.
PRODUCT SPECIFICATIONS

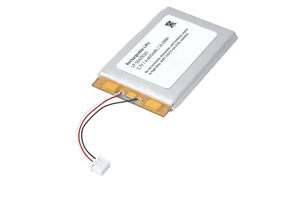

LITHIUM POLYMER BATTERIES


  • Infinite number of sizes since steel housings are not required so very thin cells can be manufactured.
  • Lithium polymer cells are built lighter
  • Custom sizes are available at relatively low production volumes so that the existing space for the battery can be utilized optimally.
  • Lithium polymer cells are also negatively affected by overcharging.

leiterplatte_bearb_aufkleber 2



Type

Capacity

(mAh)

Voltage

(V)

Size

(mm)




      T

W

L

LP906090JH 6,000mAh
3.70V
9.0 60.5 92.0
LP735977JH 4,800mAh 3.70V 7.3 59.5 78.5
LP675365JU 2,800mAh 3.70V 6.9 54.0 68.0
LP504783JU 2,050mAh 3.70V 5.2 47.5 84.5
LP103450JH
1,900mAh 3.70V 10.0 34.5 52.0
LP605060JU
1,850mAh
3.70V
6.0 51.0 63.0
LP103048JU

1,430mAh
3.70V
9.9 30.5 50.0
LP503759JU
1,300mAh
3.70V
5.4 38.0 62.0
LP503562JU
1,250mAh
3.70V
5.8 36.0 63.5
LP633750JH
1,320mAh
3.70V
6.5 38.0 52.5
LP305166JH
1,200mAh
3.70V
3.0 51.0 68.0
LP523450JU
950mAh
3.70V
5.4 34.8 52.5
LP603443JU
850mAh
3.70V
6.0 34.5 45.0
LP102530JU
680mAh
3.70V
10.0 26.0 32.0
LP443441JU
630mAh
3.70V
4.4 35.0
44.0
LP503040JH
600mAh
3.70V
5.0 30.5 42.0
LP802036JU
480mAh
3.70V
8.0 20.5 38.0
LP502243JU
430mAh
3.70V
5.2 22.5 45.5
LP333437JU
410mAh
3.70V
3.5 34.0 39.0
LP402535JU
380mAh
3.70V
4.5 25.5 37.0
LP561836JU
350mAh
3.70V
5.6 18.5 38.5
LP502030JH
250mAh
3.70V
5.0 21.0 32.0
LP851719JU
180mAh
3.70V
8.5
18.0
22.0
LP402025JU
140mAh
3.70V
4.0
22.0
27.0
LP501218JH
60mAh
3.70V
5.0
12.5
12.520.0
